Pneumatic conveyors for dense phase conveyance of dust, granules and solids Pneumatic conveying in dense phase foresees a high concentration of product in the pipes and a lower percentage of air compared to the diluted phase. This means that the product is transported in a slower and more compact way inside the pipes with higher depressions, creating real product bundles. In this configuration the material will tend to move in a compact and slower way inside the pipes, it is therefore indicated if you want to preserve the product and not demix it.
Conveyors of powders, granules and solids - short distance
Product Overview

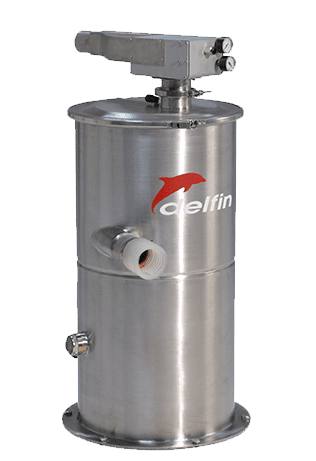

Dense phase pneumatic conveyor, equipped with multi-nozzle venturi pump, certified for food use and certifiable ATEX Zone 22 areas. Conveyor recommended for powders > 1μm and grains with poor flow, when they do not need to remain intact.
Fully automatic functional logic, system designed for both continuous operation and 24Vdc external signal.
AISI 304 stainless steel for parts in contact with the product, glossy finish interior and satin finish exterior. Various build and product discharge options available. Wide range of accessories specific to powder transport applications.
-
ADVANTAGES
- Customization and configuration available according to specific needs
- Easy to install, turn on, use and sanitize
- No obstruction or environmental pollution
- CE-certified, FDA-certified system for food application. A wide range of optional accessories is available
- Increased productivity
- Low economic impact and reduced operating and maintenance costs
- Product quality and integrity preservation
- Improved hygiene and operational conditions
- High efficiency Ventury system despite low energy consumption
-
Index Unit PRO280P 4V PRO280P 8V Air supply pressure bar 5-6 5 – 6 Max air flow m³/h 85 – 110 -130 170 – 200 – 220 Max. waterlift mbar 600 – 700 – 700 600 – 700 – 700 Q.ty of venturies 4 8 Material – Efficiency IEC 60335-2-69 Polyester – ANT M Polyester – ANT M Air cleaning consumption Nl/min 260 – 370 – 490 510 – 700 – 910 Ø Unload / Outlet mm 100 100 Type of unloading Balanced valve plug Balanced valve plug Weight kg 16 16 Max load volume lt 8 8 Ø P. conveying system mm 40-50 40 – 50 Dimensions cm Ø280 – h720 Ø280 – H720 Transport capacity kg/h |1.000|500|- |1.500|1.000|500 Distance Mt |5|10|15 |5|10|1 -

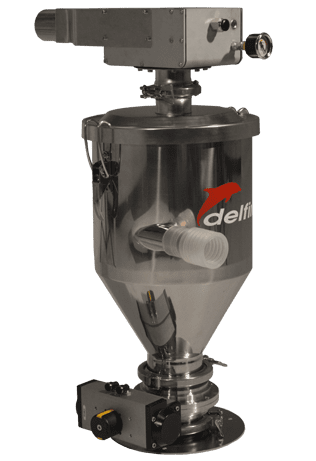

Tech280p
Product Overview
Conveyors of powders, granules and solids – long distance
Pneumatic conveyors for the long-distance transport of powders and granules. This unit can be extremely tailored to fit customer’s needs, thanks to the modularity of the components: separated or integrated suction units that can be boosted at a later time, without having to replace the entire pneumatic conveyor. Multiple construction options for the total integration on customer’s machinery and for constructive needs. Top quality conveying.
Dense phase pneumatic conveyor, equipped with multi-nozzle venturi pump, certified for food use and certifiable ATEX Zone 22 areas. Conveyor for powders > 1μm and grains also with a tendency to stick, when they do not need to remain intact.
Fully automatic functional logic, system designed for both continuous operation and 24Vdc external signal.
AISI 304 stainless steel for parts in contact with the product, glossy finish interior and satin finish exterior. Various build and product discharge options available. Wide range of accessories specific to powder transport applications.
-
ADVANTAGES
- Customization and configuration available according to specific needs
- Easy to install, turn on, use and sanitize
- No obstruction or environmental pollution
- CE-certified, FDA-certified system for food application. A wide range of optional accessories is available
- Increased productivity
- Low economic impact and reduced operating and maintenance costs
- Product quality and integrity preservation
- Improved hygiene and operational conditions
- High efficiency Ventury system despite low energy consumption
-
DATASHEET
Index Unit TECH280P 4V Air supply pressure bar 5 – 6 Max air flow m³/h 85 – 110 – 130 Max water lift mmH₂O 600 – 700 – 700 Q.ty of venturies 4 Air cleaning consumption Nl/min 260 – 370 – 490 Ø Unload / Outlet mm 100 Type of unloading Butterfly valve Weight kg 22 Max load volume l 8 Ø P. conveying system mm 50 – 60 Dimensions cm Ø280 h770 -
