INDUSTRIAL DUST COLLECTOR FOR RECOVERY AND FILTRATION OF LIGHT AND FINE SUSPENDED PARTICLES OF DUST

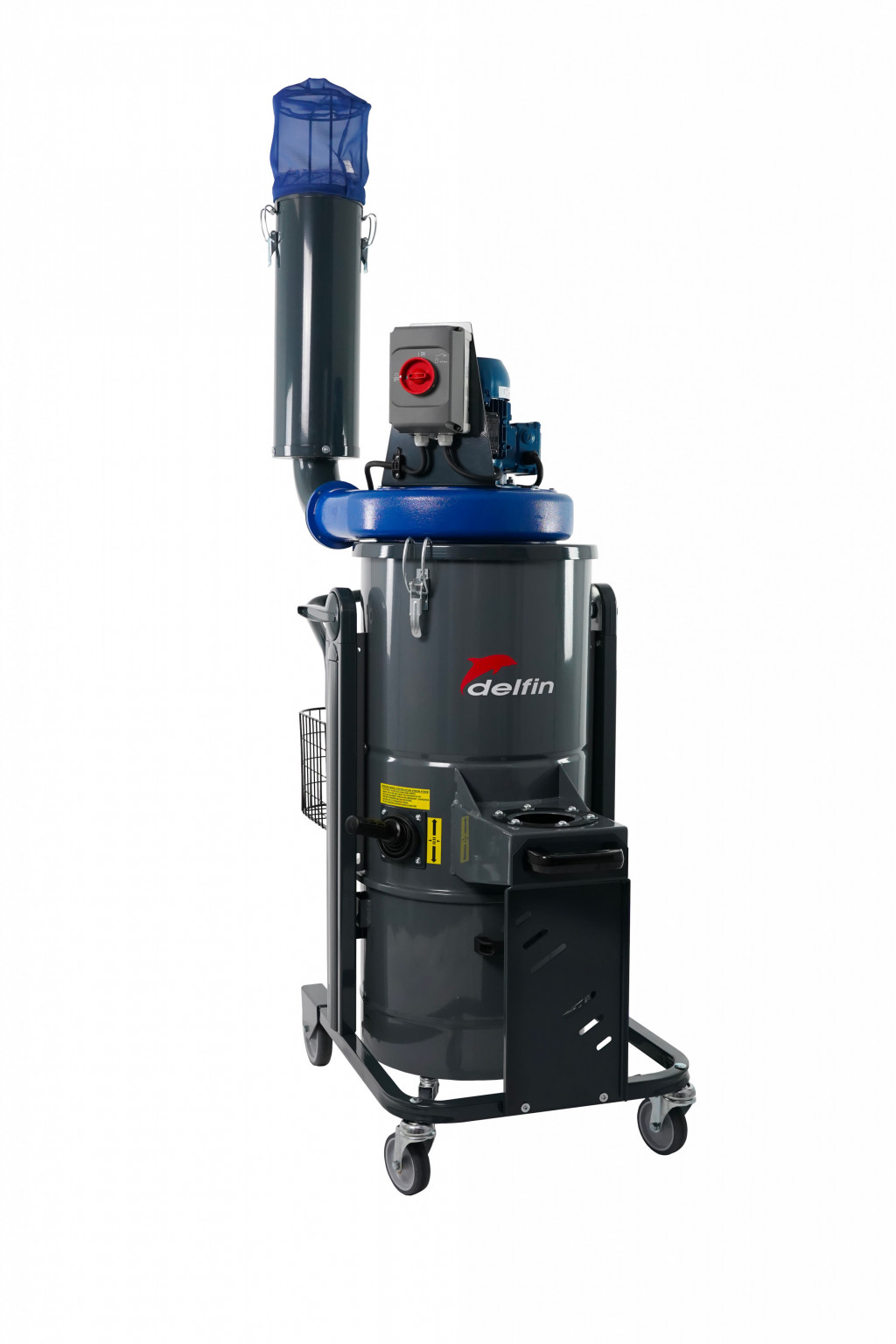

ZFR EV 420
Product Overview
The EV420 filter imprisons dusts and fumes in workplaces, allowing to guarantee the highest environmental hygiene. An electric fan allows to reach high air flow levels and a constant top vacuum performance over-time.
A wide polyester filter and a 35 lt. collection capacity make this dust collector the must-have when daily vacuuming dust particles suspended in the working environment. The machine can be either supplied with a suction arm installed on it or added directly on the assembly line.
The ATEX certified version is also available
COLLECTION OF LIGHT AND FINE DUST PARTICLES SUSPENDED IN THE AIR
The EV 420 dust collector is the ideal solution to collect any type of suspended dust particle, especially directly from the source.
Indeed, the closest the arm or hose to the source, the better the efficieny, whether they are production machines, power tools or other types of tools.
-
ADVANTAGES
- Integrated filter cleaning system
- Complete steel construction
- Compact and mobile
- High filtration efficiency
-
DATASHEET
Index Unit ZFR EV 420 Power kW 0,75 Electrical protection IP 55 Max water lift mmH₂O 180 Max air flow m³/h 1.000 Suction inlet mm 100 Noise level (EN ISO 3744) dB(A) 70 Filter Type Star Material – Efficiency IEC 60335-2-69 Polyester – L Surface – Diameter cm²-mm 20.000 – 420 Cleaning system Manual Capacity l 45 Dimensions cm 58x63x180h Weight kg 60

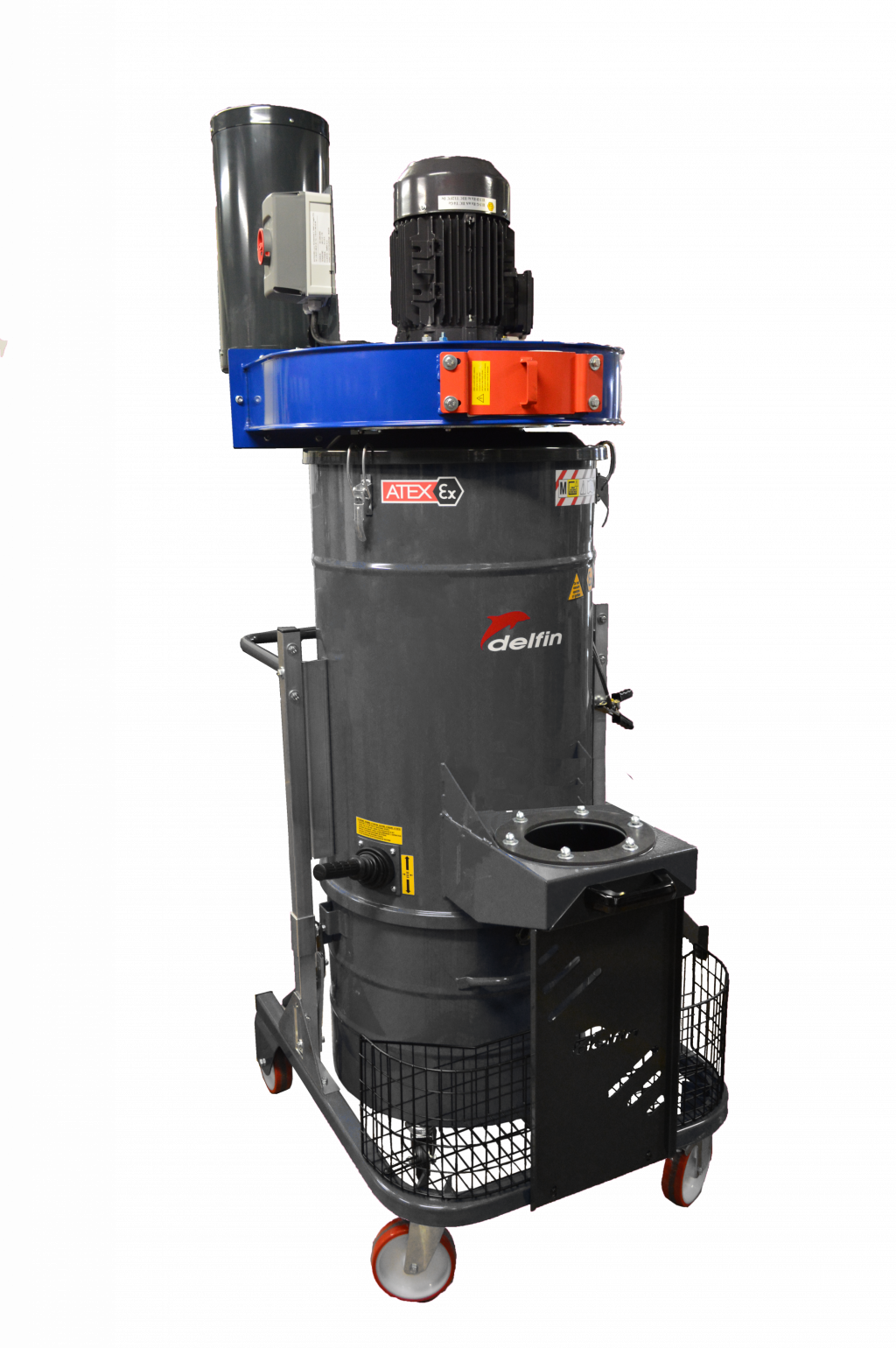

ZFR EV 560
Product Overview
EV AP 560 has been designed to be directly integrated on production lines and to directly collect light chips and fine suspended dust. Ideal and safe for the recovery of very thin chips ( as those generated during the processing of aluminium and PVC), it guarantees top recovery efficiency.
A wide polyester filter and a 160 lt collection capacity make this dust collector the must-have to guarantee the top efficiency of continuous production lines or to remove large quantities of light chips while working.

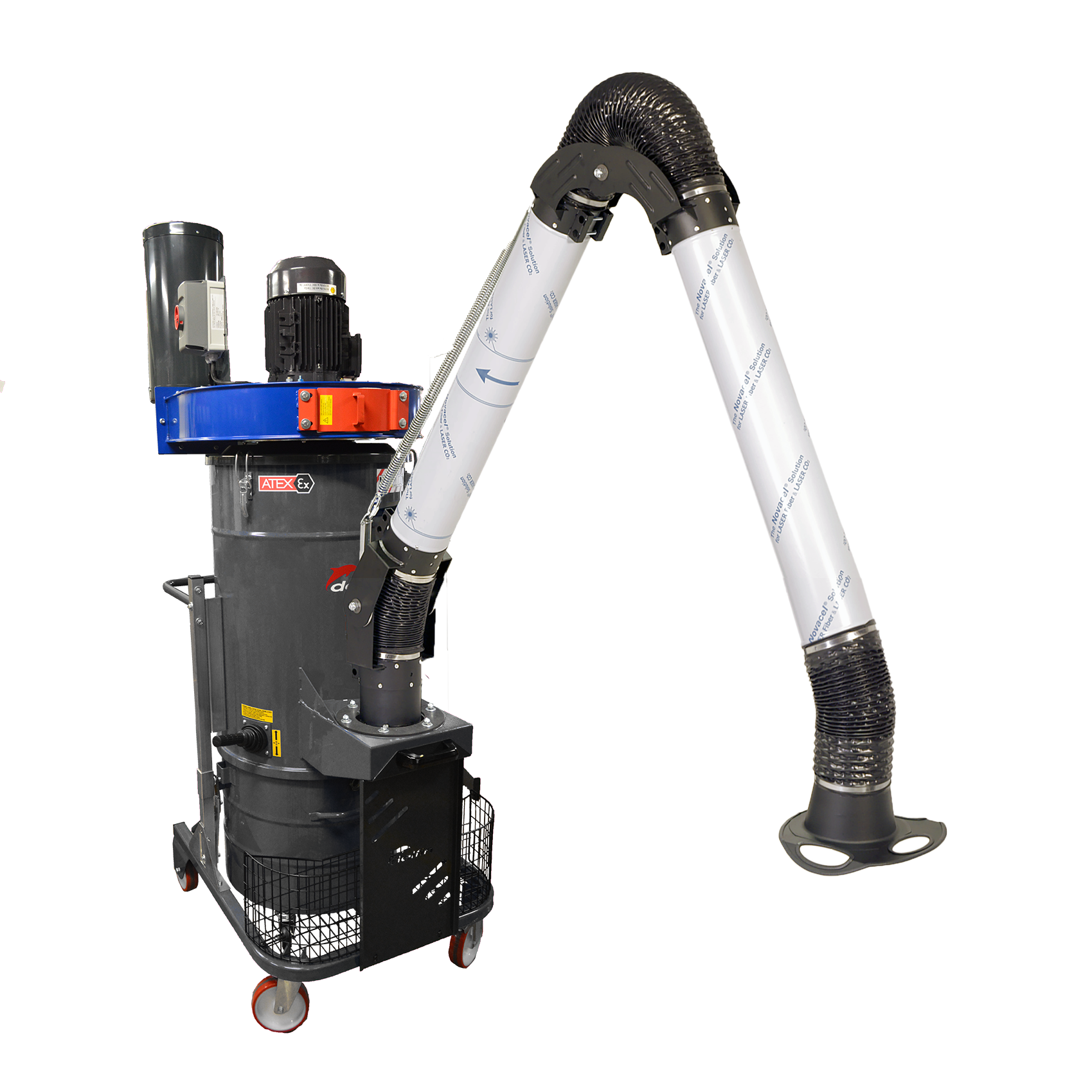

The machine can be either supplied with a suction arm installed on it or to be installed on dedusting systems/production lines.
The ATEX-certified version is also available
CHIPS COLLECTOR IDEAL FOR ALUMINIUM OR PVC MITER SAWS
The recovery of aluminium or PVC dust particles on single or double-head miter saws, as well as on CNC machineries, is one of the typical applications of this industrial chips collector.
Thanks to EV AP 560, it will be possible to recover almost all the waste and chips from the source, and to significantly cut machines maintenance and workplace cleaning time.
-
ADVANTAGES
- Largest surface filter in its category
- Integrated filter cleaning system
- Extractable collection container with optional use of disposable bags
- High air flow value
- Full customization for specific needs
- Conceived for the suction of fine dusts suspended in the air
- Optional articulated arm to suction in a restricted area
- High airflow dust collector
- Electrical panel with ΔΥ start included, 24 volt controls (K5 version)
-
DATASHEET
Index Unit ZFR EV AP 560 Voltage V – Hz 400 – 50 3~ Power kW 1,1 – 5,5 Electrical protection IP 55 Max water lift mmH₂O 160 – 470 Max air flow m³/h 1.500 – 3.500 Suction inlet mm 200 Noise level (EN ISO 3744) dB(A) 72 – 74 Filter Type Star Surface – Diameter cm²-mm 50.000 – 560 Material – Efficiency IEC 60335-2-69 Polyester – M Cleaning system Manual Capacity l 100 Dimensions cm 78x118x214h Weight kg 100 – 130
