ATEX Vacuum Cleaner and ACD Solutions for Safety in Working Environments
An ATEX or ACD-certified industrial vacuum cleaner must abide by some constructive features in order to prevent any ignition source. The vacuum cleaner must prevent the formation of static electricity and this goal can be reached by choosing constructive options such as grounding, antistatic filters, accessories for the suction of conductive materials, specific and certified engines to avoid overheating. ATEX certified vacuum cleaners are constructed to operate in full compliance with ATEX regulations in force, by ensuring maximum operational safety.

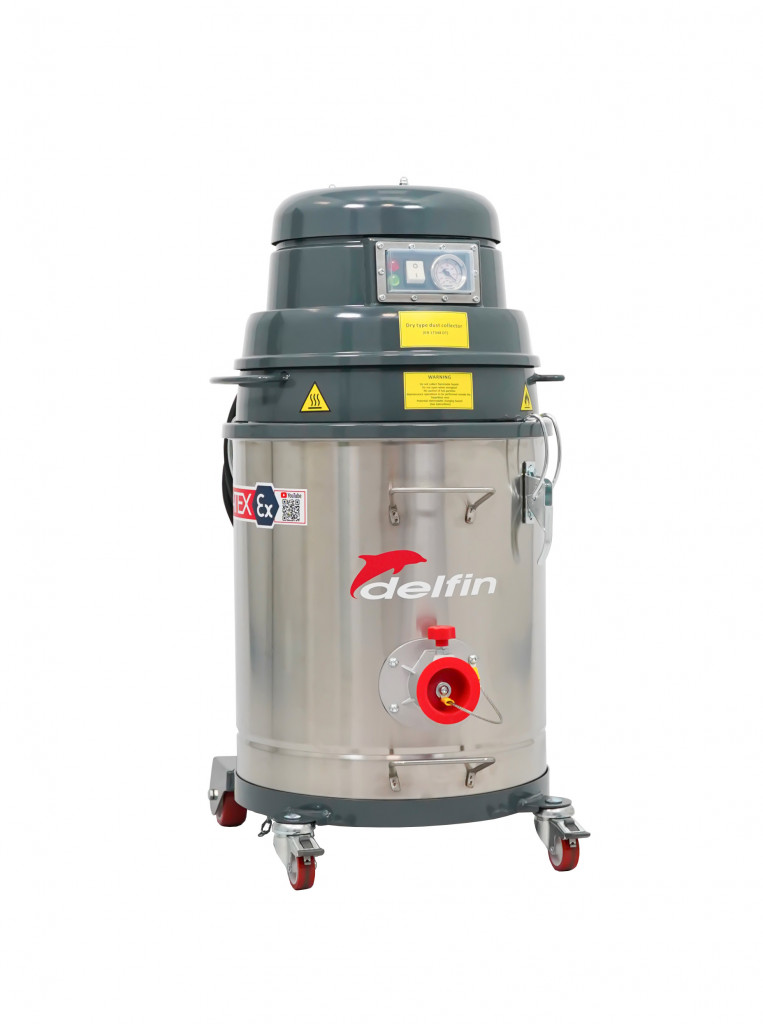

ATEX MTL300
Product Overview
Compact, easy to handle and extremely versatile.
The new ATEX-certified vacuum cleaner model 300, available in the ACD version and with double ATEX certification, has been studied to vacuum in total safety combustible powders both in the ATEX zones and in the areas not classified at risk of explosion.
The new Brushless or Bypass single-phase head for ATEX-certified models is protected by the innovative Ex tb certified safety enclosure specifically designed to prevent the entry of combustible dust and prevent explosion risks. The stainless steel container AISI304, the antistatic polyester filter M and the absolute filter HEPA are standard to ensure the vacuuming operation in total safety. The option of using class M filter bags adds an additional level of protection for the operator and ease of recovered dust disposal.
-
ADVANTAGES
- Compact and mobile
- Easy filter replacement
- Stainless steel AISI304 collection tank
- Earth grounding
- Easy to clean and to maintain
- Accessory kit included
- Maintenance-free suction unit, 20,000 running hours guaranteed
- Vacuum powerhead Ex tb Dust Tight IP64 certified
- ATEX accessories and non-metallic parts tested
-
Index Unit MTL 301 1/3D MTL 301 1/2D Atex zones ATEX Z20/22 ATEX Z20/21 Voltage V – Hz 230 – 50/60 1~ 115/230 – 50/60 1~ Power kW 1,1 1,1 Max water lift mmH₂O 2.500 2.250 Max air flow m³/h 215 215 Suction inlet mm 50 50 Noise level (EN ISO 3744) dB(A) 74 74 Marking II 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc II 1/2D Ex h tb IIIC T80°C (Int) / T95°C (ext) Da/Db Filter Type Star Star Surface – Diameter cm²-mm 4.000 – 360 4.000 – 360 Material – Efficiency IEC 60335-2-69 Polyester – ANT M Polyester – ANT M Capacity l 40 40 Dimensions cm 44x42x84h 44x42x84h Weight kg 26 26 -
Product Videos
Click on any of the informational videos below to play.

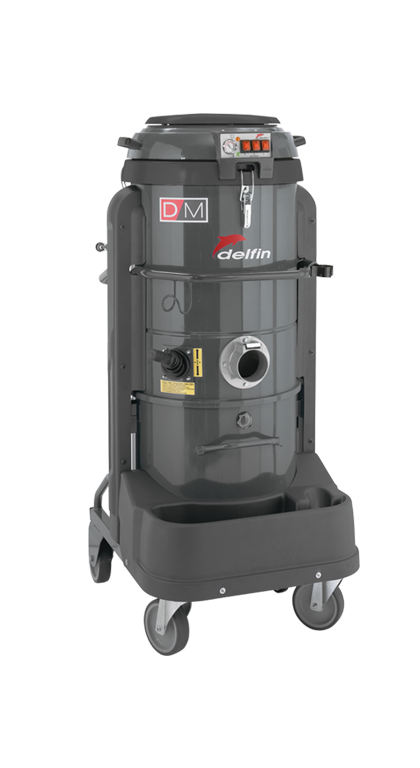

ATEX DM3 EL ACD
Product Overview
The ACD certified version of the DM3 EL. The head is Ex tb Dust Tight IP64 certified, accessories and non-metallic parts are ATEX tested.
-
ADVANTAGES
- Compact and mobile
- Additional HEPA filter (99,995% on 0,18 micron) included
- Stainless steel AISI304 collection tank
- Accessory kit included
- Vacuum powerhead Ex tb Dust Tight IP64 certified
- ATEX accessories and non-metallic parts tested
- Compliant with EN 17348: DRY TYPE
-
DATASHEET
Index Unit DM3 EL Power kW 3,3 Max water lift mmH₂O 2.500 Max air flow m³/h 540 Suction inlet mm 80 Noise level (EN ISO 3744) dB(A) 76 Use zone Ordinary location Atex zones ACD Filter Type Star Air load on filter m³/m²/h 180 Cleaning system Manual Collection tank Capacity l 60 Dimensions cm 66x70x135h Weight kg 78
