Features:
- Dust tight window
- Quiet operation - Featuring an acceleration sensor that assures
constant vibration, independant of the load /
amount of tablets in the deduster
- Optimum viewing of tablet movement with
pivoting and fully removable window
- Easy height adjustment full 360 degrees
freedom of rotation at the tablet inlet
- Vibration free housing patented drive unit
- Compact design, minimum footprint
- Easy assembly and disassembly no tools needed
- Easy to clean
Options:
- Product Divertor V2000
- Pivoting and fully removable window
- Various helix surfaces available on request

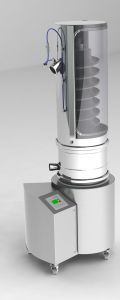

Deduster Type KD7010
Dimensions: 250 500 750 1000 1250 1500
Weight kg: 55 66 75 81 92 98
Conveying
height: 256 525 750 1040 1295 1590
Outlet height: 980 – 1165mm 1240 – 1425mm
Inlet height: 715 – 900mm
Tablet inlet/outlet diameter: ISO DN 50
Technical Data
Power Supply: 100-240 V, 50/60 Hz
Maximum Current: A 1
Compressed Air (p = 1.5 - 2 bar): 50-100 l/min
Air Extraction (pu = 10 - 20 mbar): 100-250m3/h
Noise emission at 1 m distance: < 68 dB(A)
Protection rating of drive unit: IP50
Conveying Capacity
Round 4.8 x 2.3mm: 3,500,000 tablets/hour
Round 9.1 x 3.2mm: 1,300,000 tablets/hour
Round 12.1 x 3.7mm: 410,000 tablets/hour
Round 16 x 4mm: 280,000 tablets/hour
Round 23.4 x 5.7mm: 103,000 tablets/hour
Round 25 x 7mm: 68,000 tablets/hour
Oblong 16.3 x 7.6 x 5.7mm: 425,000 tablets/hour
Capsules 19.5 x 7mm, No1: 448,000 capsules/hour
